Gyratory Compactor: Key to Accurate Asphalt Testing
A gyratory compactor is one of the most important instruments in asphalt mix design and pavement engineering. It helps simulate how asphalt behaves under the pressures of real traffic, allowing engineers to assess durability before it’s laid on a road. When used correctly, this compacting tool ensures stronger, longer-lasting pavements.
But how does it work, and why is it so essential in today’s road-building projects? Let’s explore everything you need to know.
What Is a Gyratory Compactor?

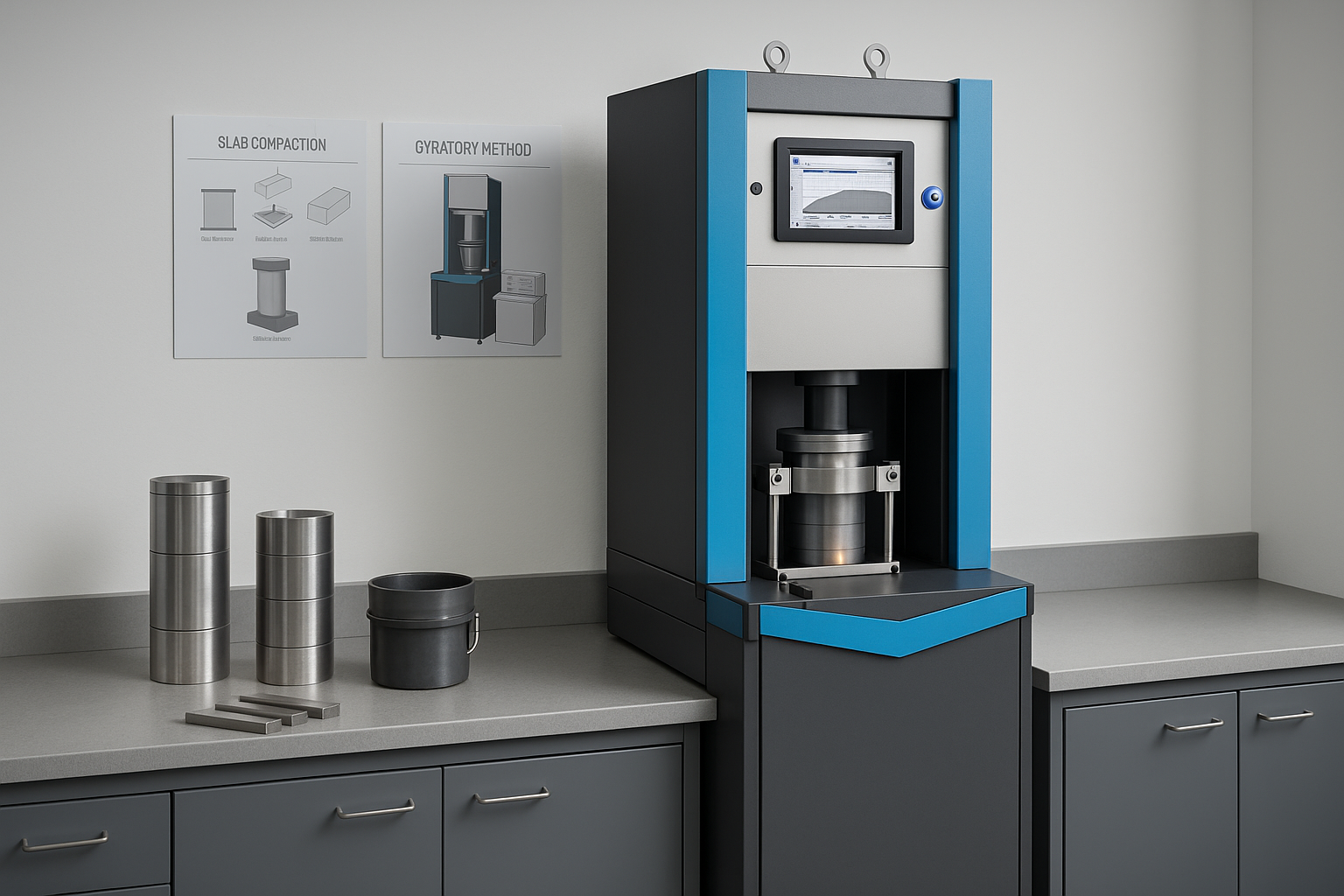

A gyratory compactor is a laboratory device that prepares asphalt specimens by compacting them under conditions that mimic real-life traffic stress. Unlike older methods like the Marshall hammer, which apply vertical blows, the gyratory compactor applies a constant vertical pressure while rotating the mold at a slight angle. This simulates the kneading action caused by vehicles driving over fresh asphalt.
The design follows specifications outlined by AASHTO T 312 and ASTM D6925 and is widely used in Superpave mix design. By replicating in-field compaction conditions, it allows engineers to make informed decisions about mix performance before construction even begins.
How the Gyratory Compaction Process Works
The working principle behind a gyratory compactor involves simultaneous vertical pressure and angular gyration. Typically, a vertical stress of around 600 kPa is applied while the mold is rotated at an angle of about 1.25 degrees.
This combined movement mimics the shearing and compression forces experienced during real-world paving. The process compacts the asphalt evenly, reduces air voids, and produces cylindrical specimens ideal for volumetric analysis.
Each gyration is logged by the system, allowing technicians to observe how quickly a mixture compacts and how it behaves over time. The result is a compaction curve that gives critical insight into the workability and density of the asphalt mix.
Components and Features of Modern Gyratory Compactors
Gyratory compactors are engineered for precision, consistency, and ease of use. Modern machines offer several advanced components that improve both performance and user experience:
- Compaction mold: The cylindrical chamber that holds the asphalt sample.
- Actuator system: Applies constant pressure to the sample.
- Gyration mechanism: Tilts the mold to a fixed angle for shearing action.
- Position sensors: Track vertical displacement and calculate density.
- Touchscreen interface: Allows for programming, data entry, and test monitoring.
- Data logging: Captures compaction curves, height readings, and air void percentages.
Many units also include cooling jackets, temperature controls, and automated ejectors to remove the compacted specimen safely.
Step-by-Step Testing Procedure
Operating a gyratory compactor involves a clear, standardized process. Following the correct steps helps ensure test reliability and repeatability.
- Prepare the Asphalt Mix
Heat the asphalt binder and aggregates to the correct temperature and mix thoroughly. - Preheat the Compaction Mold
This prevents rapid cooling, which could affect test accuracy. - Weigh and Load Sample
Place a specific mass of the hot mix into the preheated mold. - Start the Compaction Cycle
Apply the required vertical pressure and begin the programmed number of gyrations—often between 50 to 150, depending on the design. - Monitor the Compaction Curve
The machine records the height of the sample after each gyration, helping to analyze air void development. - Eject and Cool the Sample
Once complete, the sample is ejected and cooled for further analysis such as density, strength, and durability testing.
Proper timing, temperature control, and handling are key to obtaining consistent, reliable results.
Industry Applications and Standards
If you’re working in road construction, asphalt production, or pavement research, the gyratory compactor is a tool you’ll rely on regularly. It’s used not just for mix design, but to predict how asphalt will hold up in the real world. From verifying product quality to developing next-gen pavement materials, this equipment serves multiple critical roles.
Practical Applications You’ll Encounter
- Highway and Road Construction
Gyratory compactors help simulate field compaction, giving you confidence that your asphalt mixes will perform under actual traffic loads and weather conditions. - Asphalt and Bitumen Manufacturing
If you’re involved in production, this tool ensures your mix designs are optimized and consistently meet quality benchmarks before reaching the job site. - Quality Control and Assurance Labs
For labs focused on compliance and reliability, it’s your go-to method for confirming materials meet project specifications. - Academic and Research Institutions
Universities and research facilities use gyratory compactors to explore innovative materials and improve pavement performance models. - Forensic and Performance Analysis
When roads fail prematurely, these compactors help you analyze and recreate compaction conditions to pinpoint what went wrong.
Standards That Shape the Way You Work
Your test results are only as good as the standards behind them. That’s why AASHTO and ASTM protocols are so important when using a gyratory compactor. Here are the key ones you should know:
1. AASHTO T 312
Defines how to prepare and measure the density of hot-mix asphalt (HMA) specimens using a Superpave gyratory compactor.
2. ASTM D6925
Offers a standard test method for evaluating relative density in HMA specimens—crucial for consistency across different labs and projects.
3. AASHTO PP 35
Focuses on validating the compactor itself, ensuring the equipment meets precision requirements for repeatable results.
These standards cover everything from compaction pressure and angle to gyration speed and cycle count, so you can trust that your test data mirrors real-world pavement behavior.
Tips for Accuracy and Maintenance
Precision is everything in asphalt testing. To ensure your gyratory compactor delivers reliable results, consider these best practices:
- Calibrate regularly: Check vertical pressure, gyration angle, and height sensors often.
- Control the environment: Keep the lab temperature stable and avoid drafts that cool asphalt too quickly.
- Preheat everything: Mold, baseplate, and even tools should be brought to compaction temperature.
- Clean the chamber after use: Residual asphalt can affect compaction and machine movement.
- Monitor machine wear: Check seals, bearings, and mechanical components for wear or stiffness.
Even small deviations in temperature or pressure can impact results, so attention to detail is essential.
Final Thoughts
The gyratory compactor remains the gold standard for evaluating asphalt mixes in modern pavement design. It bridges the gap between lab analysis and field performance, giving engineers the ability to optimize durability, reduce costs, and avoid premature failures.
If you’re designing pavements meant to last, or running a lab focused on accurate quality control, this instrument should be central to your testing strategy. It’s not just about following specifications—it’s about building roads that work.
